● Ingenic T31Z，Built-in 512M DDR, 1.3G main frequency
● FHD 2.0MP 1080P 1920*1080px,high quality image
● f= 2.7mm F=2.0mm angle 120°
● Support 2.4G wifi
● Day&Night Vision, two-way audio
● Built-in speaker, effective in 3 meters
● Support PIR detection alerts and push notification to phone APP
● Built-in Battery 5200mah
● Suport Cloud storage
● With 4pcs IR leds, Night Vision up to 6 meters
● Support iOS and Android APP
● Support AJCLOUD APP
● Ingenic T31Z，Built-in 512M DDR, 1.3G main frequency
● FHD 2.0MP 1080P 1920*1080px,high quality image
● f= 2.7mm F=2.0mm angle 120°
● Support 2.4G wifi
● Day&Night Vision, two-way audio
● Built-in speaker, effective in 3 meters
● Support PIR detection alerts and push notification to phone APP
● Built-in Battery 5200mah
● Suport Cloud storage
● With 4pcs IR leds, Night Vision up to 6 meters
● Support iOS and Android APP
● Support AJCLOUD APP
Download
|

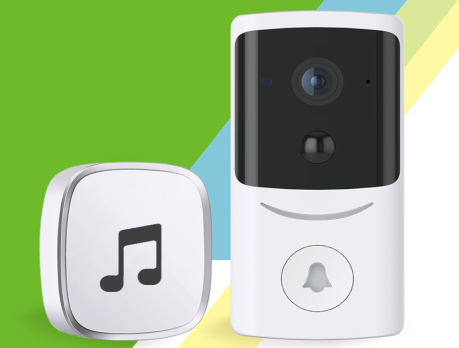

Model NO.
|
TT-DB006
|
|
Doorbell specifications
|
Main IC
|
Ingenic T31Z，Built-in 512M DDR, 1.3G main frequency
|
|
video
|
1080P，15 frames/sec
|
|
Lens
|
2.7mm focal length F2.0, Viewing angle 120°
|
|
monitor
|
Built-in MIC, effective at 3 meters distance
|
|
Intercom
|
Built-in speaker, effective at 3 meters
|
|
Night vision
|
4pcs 850nm infrared lamps, night vision distance is greater than 4 meters
|
|
PIR
|
Support PIR detection, the detection distance is adjustable from 1 to 4 meters, and the horizontal angle is 90 degrees
|
|
WIFI
|
Support 2.4G, 802.11b/g/n, built-in WIFI antenna
|
|
Anti-demolition
|
When the doorbell is removed from the fixed bracket, an alarm will be sent to the APP
|
|
Working status indicator
|
Red and blue two-color indicator light
|
|
Doorbell button indicator
|
Green light
|
|
Configuration button（RST)
|
Realize the network configuration connection with the router
|
|
power button
|
Long press the button to realize the switch function
|
|
Doorbell button
|
Call the user through this button
|
|
Microusb interface
|
Support external 5V 2A DC power supply, and realize to charge the battery
|
|
battery
|
Built-in 18650 battery pack (5200mah)
|
|
Matching Dingdong
|
Indoor "dingdong" equipment; get electricity directly from the power socket; support European and American sockets; a variety of ring tones can be equipped
|
|
Reference power consumption
|
Standby current (during sleep period)
|
230~260uA
|
|
Working current during the day (after waking up)
|
220mA
|
|
Night vision working current (after wake-up)
|
280mA
|
|
Comprehensive evaluation of working hours
|
Assuming to work 300 seconds a day, the comprehensive working time theory can reach 180 days
|
|
Physical index
|
Bare machine weight
|
218g（doorbell）
53g（RF Ding Dong)
|
|
Bare machine size (length*width*height)
|
124*60*36mm(doorbell）
70*52*48mm(RF Ding Dong)
|
|
Waterproof and dustproof grade
|
IP65
|
|
Operating temperature
|
-10℃ – 50℃
|
|
Working humidity
|
10% – 90%
|
|
packing list
|
doorbell
|
1*830RTD bare metal
|
|
RF Ding Dong
|
1*Dingdong bare metal
|
|
Charging Cable
|
1*1.5m USB charging cable
|
|
Quick Installation Guide
|
1 pcs
|
|
Wall installation package
|
1*Wall-mounted fixed panel
1 bag of screws
|
