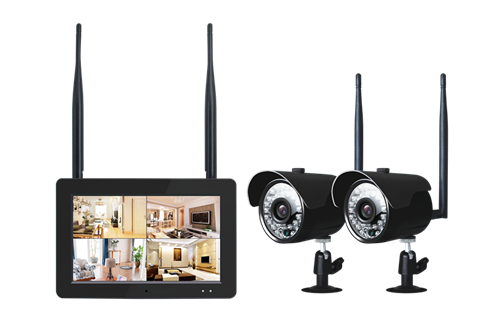

2-CH 7” WIFI NVR Kit
Model:TT-3214FK
| NVR | |||||||
| Model | TT-3214FK-N | ||||||
| Display | 7'' LCD Touch Screen | ||||||
| Resolution | 1024(H)×RGB×600(V) | ||||||
| Operation System | H.264 Embedded Linux Operation System | ||||||
| IP Video Input | 2 CH or 4CH x 1080P video | ||||||
| Recording Mode | Manual Recording,Time Recording,Motion Detection Record. | ||||||
| Video Compression | H.264 | ||||||
| Recording /Playback | 2CH/4 CH 1.0MP Recording & 1CH Playback @25fps | ||||||
| 2CH/4 CH 2.0MP Recording 1CH Playback@15fps | |||||||
| Playback Mode | Instant/Regular/Events playback | ||||||
| Video Resolution | 1.0MP/2.0MP Recording | ||||||
| Internet Protocol | UPnP ,SMTP ,PPoE ,DHCP | ||||||
| Storage Type | TF Card | ||||||
| Storage Capacity | 128GB | ||||||
| Backup | USB Backup ，TF Card | ||||||
| USB Interface | 1 * USB2.0 Interface(Support Upgrade,Backup,Mouse) | ||||||
| Work Temperature | 0℃～+40℃ | ||||||
| Work Humidity | 10%----65% | ||||||
| Device Control | Remote Control & Mouse | ||||||
| Power Switch | On/Off | ||||||
| Battery Port | Max. 2pcs* 18650 Battery | ||||||
| Power Input | DC +5 V / 1.5A | ||||||
| Weight | 1.25kg | ||||||
| Consumption | ≤5W | ||||||
| WIFI CAMERA | |||||||
| Model | TT-3214FK-C | ||||||
| System | H.264 Linux operating system | ||||||
| Image Sensor | 1/3” Progressive Scan Sensor | ||||||
| Lens | 3.6mm(6mm for option) | ||||||
| Stream | Double Stream:1920x1080@15fps、640x480@15fps | ||||||
| S/N Ratio | > 39.1 dB | ||||||
| Resolution | 1280*720P /1920*1080P 16:9 | ||||||
| Minimum Illumination | Color: 0.1Lux,B/W: 0.01Lux | ||||||
| OSD | Date Time & Title | ||||||
| White Balance | Auto | ||||||
| Day&Night | IR cut filter with auto switch | ||||||
| Mirror/Flip | On/off | ||||||
| 3D-DNR | Auto | ||||||
| Thunder Prevention | Standard IEC61000-4-5 | ||||||
| Power Consumption | ≤3W | ||||||
| Operation Temperature/Humidity | -10℃ to +50℃ / 30% to 80% RH | ||||||
| Storage Temperature/Humidity | -20℃ to +60℃ / 20% to 90% RH | ||||||
| Power | DC12V/1A | ||||||
| Weight | 0.15kg | ||||||
