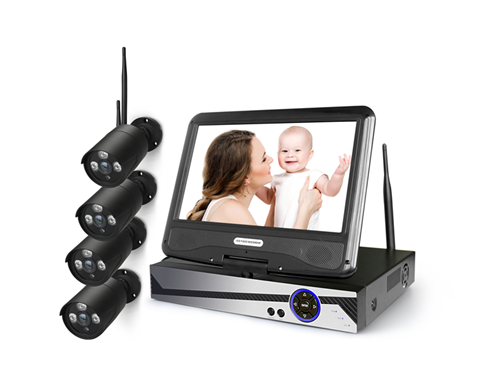

4-CH 10.1” WIFI NVR Kit
Model:TT-21A14FK
| NVR | ||
| Model | TT-21A14FK-N | |
| Processor | Hi3536E V100 | |
| Operating system | H.265 Embedded Linux operating system | |
| Video Input | Network video input | 4CH |
| Video ( audio output option) | HDMI output | 1CH, Resolution:1024x768，1280x1024,1366x768，1440x900,1920x1080p，(support audio output option) |
| Video compress standard | standard H.265 | |
| Video and audio code parameter | Resolution | 720P/960P/1080P |
| Sync playback | 4CH | |
| Video management | Recording / Snapshot mode | Manual recording、Time recording、motion detection recording、alarm recording |
| Playback mode | Instant playback、regular playback、event playback | |
| Backup mode | Regular backup | |
| HDD drive | type | 1* SATA port |
| Max volume | Each port support 1*max 6TB HDD | |
| External port | Network port | 1 *RJ45 10M/100Madaptive ethernet port |
| USB port | 1 *USB 2.0 | |
| Audio port | 1*3.5mm earphone port (optional) | |
| Network management | Network protocol | UPnP(P2)、SMTP(email service)、PPPoE(online)、 |
| DHCP (obtain IP address automatically) etc | ||
| Others | Power | DC 12V 2A |
| Consumption(not include HDD) | ≤6W | |
| Work temperature | -10℃--＋55℃ | |
| Work humidity | 10％--90％ | |
| Dimension | 215mmx235mmx55mm | |
| WIFI IPC Camera | ||
| Model | TT-21A14FK-C | |
| Image Sensor | 1/3” Progressive Scan Sensor/AK3918E+SC2232 | |
| Lens | 3.6mm (6mm for option) | |
| S/N Ratio | > 39.1 dB | |
| Video compress standard | Standard H.265, | |
| Stream parameter | Dual stream,1920x1080@15fps,640x480@15fps | |
| Resolution | 1920*1080P | |
| Minimum Illumination | Color: 0.1Lux,B/W: 0.01Lux | |
| OSD | Date Time & Title | |
| Audio | Option | |
| White Balance | Auto | |
| Day&Night | IR cut filter with auto switch | |
| 3D-DNR | Auto | |
| Thunder Prevention | Standard IEC61000-4-5 | |
| IR LED | 3pcs LED; IR CUT dual filter auto switch | |
| IR distance | 15m-20m | |
| IP Waterproof Level | IP66 | |
| Power Consumption | ≤3W | |
| Operation Temperature/Humidity | -10℃ to +50℃ / 30% to 80% RH | |
| Storage Temperature/Humidity | -20℃ to +60℃ / 20% to 90% RH | |
| Power | DC12V/1A | |
| Weight | 0.3kg | |
