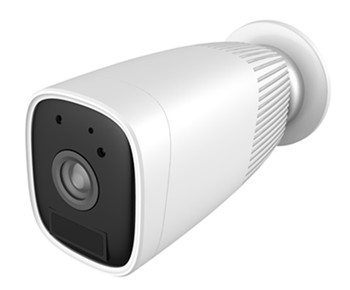

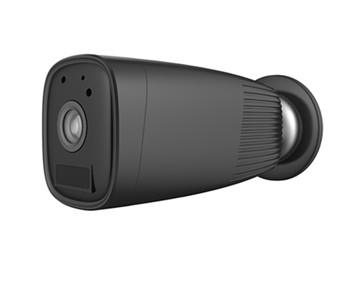

● Low power smart WiFi battery camera
●2.0 Megapixel,110° wide viewing angle
● Support PIR motion detection,alarm push to mobile phone
● Support 2.4G Wi-Fi connection
● Support mobile phone & PIR detection wake up
● High Quality two-way intercom with noise cancellation
● Support Micro SD card up to 64GB
● Low consumption 4*18650 Lithium battery .
● Maintain 10-12 months under 15s awoke everytime, 15 times every day
|
Main Processor
|
Hi3518E+F23
|
|
Sensor
|
1/3 COMS
|
|
Video
|
1920*1080@25fps
|
|
H.264 Bitrate self-adaptive
|
|
Suitable for changeable network environments(3G,4G or WIFI)
|
|
Audio
|
Two-way voice & Support echo cancellation
|
|
Built-in speaker
|
|
Built-in Microphone
|
|
View Angle
|
110 degree Horizontal
|
|
Day & Night
|
IR-CUT double filter automatically switches
|
|
6pcs infrared LED 850mm
|
|
Min Illumination:1 Lux
|
|
Connection
|
Support WiFi 2.4 GHz, IEEE 802.11 b\g\n
|
|
AP Hot spot
|
|
Scan QR code
|
|
Storage
|
Support SD card 8G / 16G / 32G / 64G
|
|
Recording
|
Support smart phone local record, records video playback
|
|
Optional recording time setting between 15s-45s, once doorbell triggered
|
|
Screen Shot
|
Support Smart phone screen shots
|
|
Working Condition
|
PIR detection triggered
Mobile phone Control
|
|
Running up
|
System running up in millisecond
|
|
Inform
|
Push message within 1s-2s
|
|
Motion Detection
|
PIR motion detection, sensitivity High(2s)/ Medium(within 5s)/ Low (within 10 s)
|
|
Scene Mode
|
Backlight compensation
Infrared night vision
Quick movement
HLC
D-WDR
|
|
Share
|
Support QR code share(one-click generates QR-code, share to others
To add your doorbell devices, join in remote control. Maximum supports 7 authenticated users, supports users 3 view at the same time
|
|
Battery
|
3.7V, 4pcs 18650 battery, 2600mAH,
|
|
Power Consumption
|
Working 170mA, Standby 160μA
|
